| Lifecycle |
Active |
| Distrib. Inventory |
No |
| RAID-on-Chip Controller |
SAS3316 dual core RAID on Chip (ROC) |
| What’s in the box |

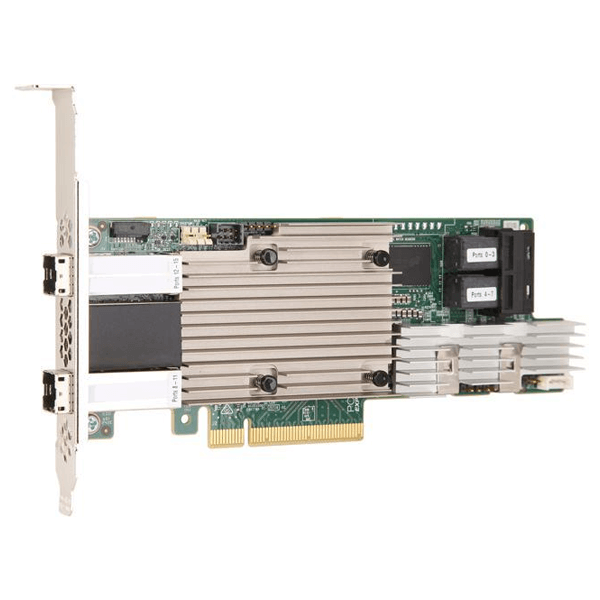

MegaRAID SAS 9380-8i8e, QIG, LP bracket |
| Generation |
12 Gb/s |
| External Ports |
8 |
| External Connectors |
2 Mini-SAS HD SFF8644 |
| RAID Management Software |
LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) |
| Cache Protection |
CVPM02 CacheVault Power Module |
| Physical Dimensions |
6.600″ x 2.712″ |
| Host Bus Type |
x8 lane PCI Express® 3.0 |
| Cache Memory |
2GB 1866MHz DDR3 SDRAM |
| Internal Ports |
8 |
| Data Transfer Rates |
Up to 12Gb/s per port |
| Devices Supported |
Up to 240 SATA and/or SAS devices |
| Internal Connectors |
2 Mini-SAS HD SFF8643 |
| MTBF |
> 2,500,000 hours |
| Operating Temperature |
Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory CVPM02 55°C |
| Operating Voltage (V) |
+3.3V, +12V |
| OS |
Microsoft Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, Fedora, Debian. |
| Regulatory Certifications |
Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
| Warranty |
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
