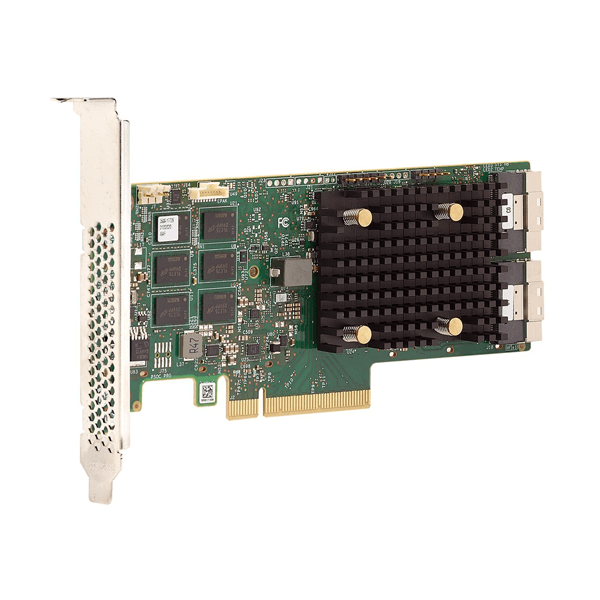

LSI MEGARAID SAS 9560-16I SPECIFICATIONS
Product | Manufacturer Part # | What’s in the Box |
---|---|---|
MegaRAID 9560-16i | 05-50077-00 | MegaRAID 9560-16i, FH (attached), LP bracket |
CacheVault CVPM05 | 05-50039-00 | CacheVault Power Module (CVPM05) with 24″ remote extender |
Specification | Value |
---|---|
Lifecycle | Active |
Distrib. Inventory | No |
Generation | 12 Gb/s |
Management Software | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
Cache Protection | CacheVault CVPM05 |
Physical Dimensions | Low profile 6.127” x 2.712” |
Host Bus Type | x8 lane PCI Express 4.0 |
Cache Memory | 8GB |
Internal Ports | 16 |
Data Transfer Rates | 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant |
Devices Supported | SAS/SATA: 240, NVMe: 24 |
Internal Connectors | 2 x8 SFF-8654 (SlimSAS) |
MTBF | >3,000,000 hours at 40° C |
Operating Temperature | 0°C to 55°C |
OS | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD |
Regulatory Certifications | Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
Warranty | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
I/O Processor / SAS Controller | SAS3916 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC) |
