| Lifecycle |
Active |
| Distrib. Inventory |
No |
| RAID-on-Chip Controller |
LSISAS3108 dual core RAID on Chip (ROC) |
| What’s in the box |

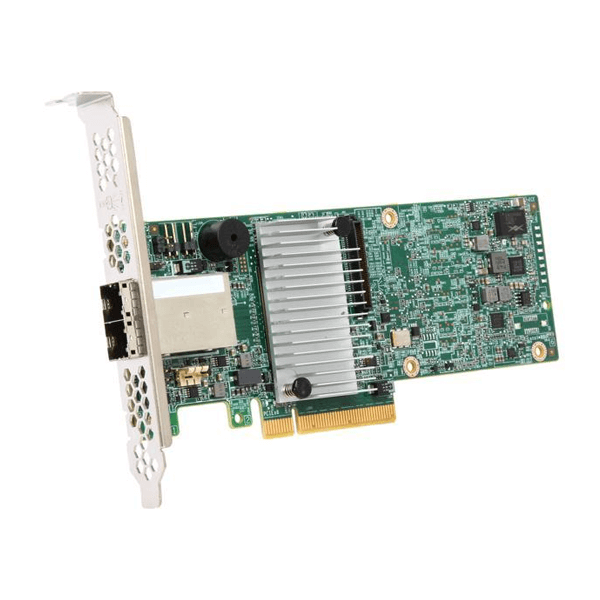

MegaRAID SAS 9380-8e, QIG, LP bracket |
| Generation |
12 Gb/s |
| External Ports |
8 |
| External Connectors |
2 Mini-SAS HD SFF8644 |
| RAID Management Software |
LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) |
| Cache Protection |
Optional CacheVault Flash Module (LSICVM02) Includes CVFM04, CVPM02, mounting clip, and cable |
| Physical Dimensions |
MD2 Low profile (6.6″ x 2.536″) |
| Host Bus Type |
x8 lane PCI Express® 3.0 |
| Cache Memory |
1GB 1866MHz DDRIII SDRAM |
| Data Transfer Rates |
Up to 12Gb/s per port |
| Devices Supported |
Up to 240 SATA and/or SAS devices |
| MTBF |
1,203,345 hours |
| Operating Voltage (V) |
+3.3V, +12V |
| OS |
Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems |
| Regulatory Certifications |
BSMI, C-tick, CSA C22.2, EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3, FCC Class A, Class B, RRL for MIC, UL, UL1950, VCCI |
| Warranty |
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
