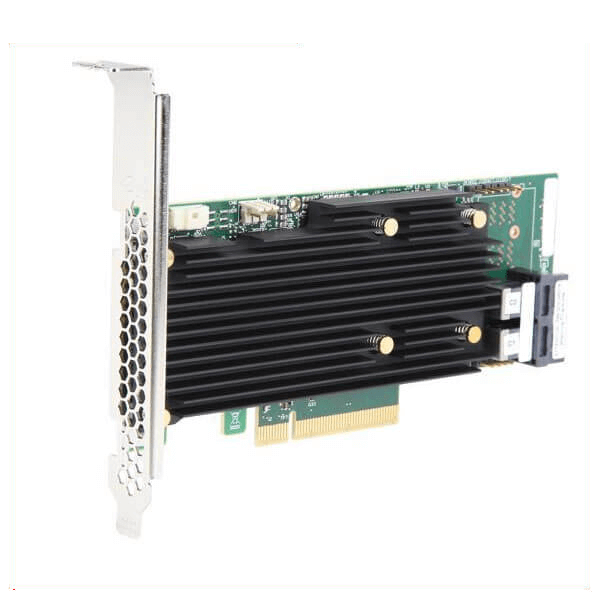

LSI MegaRAID 9460-8i 12Gb/s PCI Express RAID Controller

Liên hệ

YÊN TÂM MUA HÀNG

Hỗ trợ tư vấn miễn phí cùng chuyên gia

Hỗ trợ lắp đặt & cài đặt phần mềm chuyên dụng

Hỗ trợ kỹ thuật 24/7

Giao hàng toàn quốc, nhanh chóng

Giá cạnh tranh nhất thị trường

Dịch vụ hậu mãi hàng đầu Việt Nam

LIÊN HỆ KINH DOANH

Mr.Vân: 0976.638.715

Mr.Tiên: 0932.720.968

Ms.Dung: 0335.111.715

Mr.Tâm: 0372.383.379

Ms.Trâm: 0335.090.715

Ms.Hằng: 0989.499.715

Lưu ý:
Giá chưa bao gồm thuế VAT

LSI MEGARAID SAS 9460-8I SPECIFICATIONS

Product	Manufacturer Part #	What’s in the Box
MegaRAID 9460-8i	05-50011-02	MegaRAID 9460-8i, QIG, LP bracket
CacheVault CVPM05	05-50039-00	CacheVault Power Module (CVPM05) with 24″ remote extender

Specification	Value
Lifecycle	Active
Distrib. Inventory	No
Management Software	LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
Cache Protection	CacheVault CVPM05
Physical Dimensions	Low profile 6.127” x 2.712”
Host Bus Type	x8 lane PCI Express® 3.1
Cache Memory	2GB 2133 MHz DDR4 SDRAM
Internal Ports	8
Devices Supported	SAS/SATA: 240, NVMe: 24
Internal Connectors	2 Mini-SAS HD x4 SFF-8643
Operating Temperature	0°C to 55°C
Operating Voltage (V)	+12V +/-8%, 3.3V +/-9%
OS	Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Regulatory Certifications	Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Warranty	3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
I/O Processor / SAS Controller	SAS3508 dual-core RAID-on-Chip (ROC)
