KEY FEATURES
- Single socket R3 (LGA 2011) support Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
- Intel® C612 chipset
- 4x 3.5″ Hot-swap SATA3 drive bays
- Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
- 1x PCI-E 3.0 x16 slot
- Intel® i350-AM2 Dual port GbE LAN
- Integrated IPMI 2.0 and KVM with Dedicated LAN
- I/O ports: 1x VGA, 2x COM, 2x USB 3.0, 4x USB 2.0
- 400W Redundant Power Supplies Platinum Level Certified

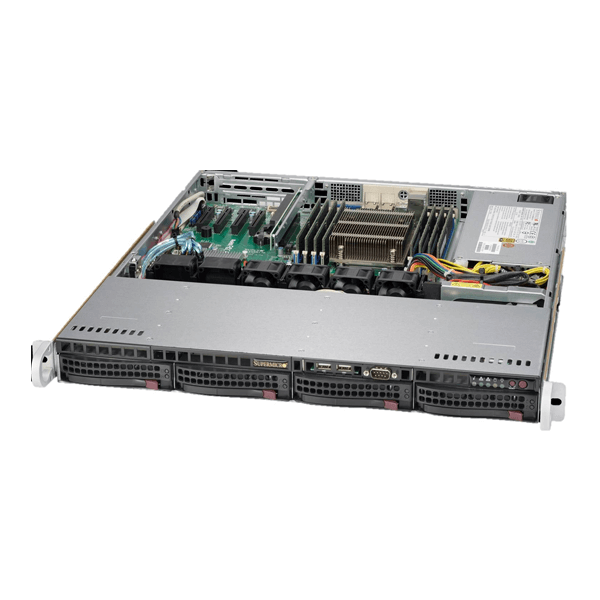

SUPERSERVER 5018R-MR (SYS-5018R-MR) QUICK SPECIFICATIONS
| Product Type/Brand |
Server Supermicro |
| Product SKUs |
SYS-5018R-MR (SuperServer 5018R-MR) |
| Motherboard |
Supermicro X10SRi-F |
| PROCESSOR/CACHE |
| CPU |
- Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3 family (up to 145W TDP **)
- Single Socket R3 (LGA 2011)
|
| Cores |
Up to 22 Cores† / Up to 55MB† Cache |
| MEMORY |
| Memory Capacity |
- 8x 288-pin DDR4 DIMM slots
- Up to 1TB ECC 3DS LRDIMM
- Up to 512GB ECC LRDIMM
- Up to 256GB ECC RDIMM
|
| Memory Type |
2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs |
| DIMM Sizes |
- 3DS LRDIMM: 128GB
- LRDIMM: 64GB, 32GB
- RDIMM: 32GB, 16GB, 8GB, 4GB
|
| Memory Voltage |
1.2V |
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| ONBOARD DEVICES |
| Chipset |
Intel C612 chipset |
| SATA |
- SATA3 (6Gbps) via C612 controller
- RAID 0, 1, 5, 10 support
|
| Network Controllers |
- Intel® i350-AM2 Dual Port Gigabit Ethernet
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8201N PHY (dedicated IPMI)
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
| Video |
ASPEED AST2400 BMC |
| CHASSIS |
| Form Factor |
1U Rackmount |
| Chassis Model |
CSE-813MFTQ-R407CB |
| EXPANSION SLOTS |
| PCI-Express |
1x PCI-E 3.0 x16 slot |
| M.2 |
|
| DRIVE BAYS/STORAGE |
| Hot-swap |
4x 3.5″ Hot-swap drive bays |
| POWER SUPPLY |
| 400W 1U Redundant Power Supplies with PMbus |
| Certification |
 Platinum Level Certified |
