KEY FEATURES
- Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
- Up to 1TB† ECC 3DS LRDIMM , up to DDR4-2400†MHz ; 8x DIMM slots
- 1 PCI-E 3.0 x4 (in x8), 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 2.0 x2 (in x4), 1 PCI-E 2.0 x4 (in x8)
- Intel® i350-AM4 Quad port GbE LAN
- 12x 3.5″ Hot-swap SAS3 HDD bays; Opt. 2x 2.5″ Hot-swap HDD bays (rear)
- SAS3 via Broadcom 3008 controller; IR mode
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
- 3x 8cm high-performance PWM fans
- 920W Redundant Power Supplies Platinum Level (94%)
- Dual JBOD expansion ports

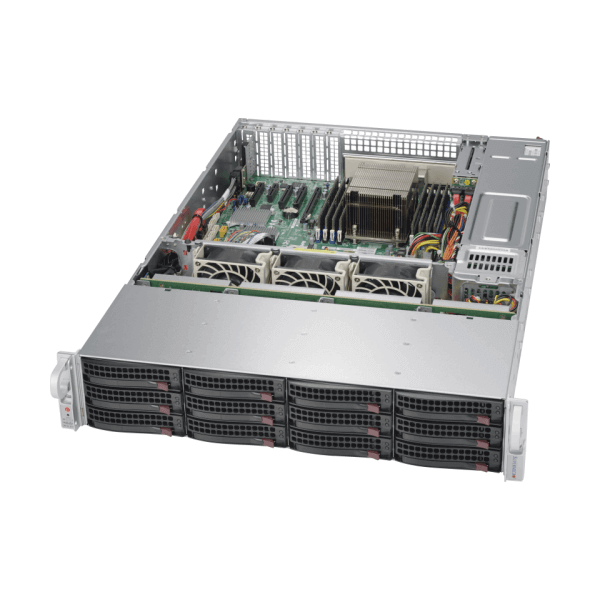

SUPERSTORAGE 5028R-E1CR12L (SSG-5028R-E1CR12L) QUICK SPECIFICATIONS
| Product Type/Brand |
Server Supermicro |
| Product SKUs |
SSG-5028R-E1CR12L (SuperStorage 5028R-E1CR12L) |
| Motherboard |
Supermicro X10SRH-CLN4F |
| PROCESSOR/CACHE |
| CPU |
- Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3 family (up to 145W TDP **)
- Single Socket R3 (LGA 2011)
|
| Cores |
Up to 22 Cores† / Up to 55MB† Cache |
| MEMORY |
| Memory Capacity |
- 8x 288-pin DDR4 DIMM slots
- Up to 1TB ECC 3DS LRDIMM
- Up to 512GB ECC LRDIMM
- Up to 256GB ECC RDIMM
|
| Memory Type |
2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs |
| DIMM Sizes |
- 3DS LRDIMM: 128GB
- LRDIMM: 64GB, 32GB
- RDIMM: 32GB, 16GB, 8GB, 4GB
|
| Memory Voltage |
1.2V |
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| ONBOARD DEVICES |
| Chipset |
Intel C612 chipset |
| SAS |
- SAS3 (12Gbps) via Broadcom 3008 (IR mode)
- SW RAID 0, 1, 10
|
| Network Controllers |
- Intel® i350-AM4 Quad Port Gigabit Ethernet
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1 Realtek RTL8201N PHY (dedicated IPMI)
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
| Video |
ASPEED AST2400 BMC |
| CHASSIS |
| Form Factor |
2U Rackmount |
| Chassis Model |
CSE-826BE1C-R920LPB |
| EXPANSION SLOTS |
| PCI-Express |
- 1 PCI-E 3.0 x4 (in x8) slot
- 1 PCI-E 3.0 x8 (in x16) slot
- 2 PCI-E 3.0 x8 slots
- 1 PCI-E 2.0 x2 (in x4) slot
- 1 PCI-E 2.0 x4 (in x8) slot
|
| M.2 |
|
| DRIVE BAYS/STORAGE |
| Hot-swap |
12x 3.5″ Hot-swap SAS3 HDD bays |
| Optional |
2x 2.5″ Hot-swap HDD bays (rear) |
| POWER SUPPLY |
| 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C |
| Certification |
 Platinum Level Certified |
