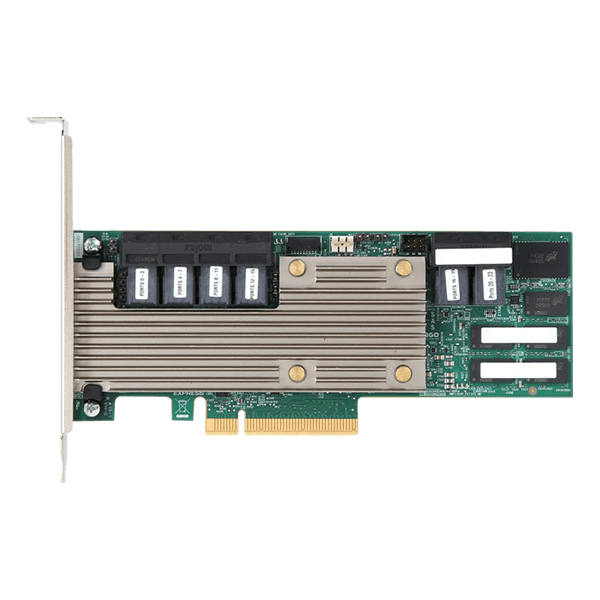

LSI MEGARAID SAS 9361-24I SPECIFICATIONS
| Product | Manufactuer Part # | What’s in the Box |
|---|---|---|
| MegaRAID SAS 9361-24i | 05-50022-00 | MegaRAID SAS 9361-24i, QIG, LP bracket |
| CacheVault CVPM02 | 05-50038-00 | CacheVault Power Module (CVPM02) with 10” and 24” remote cable extender |
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Distrib. Inventory | No |
| RAID-on-Chip Controller | SAS3324 dual core RAID-On-Chip (ROC) |
| What’s in the box | MegaRAID SAS 9361-24i, QIG, LP bracket |
| Generation | 12 Gb/s |
| RAID Management Software | LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) |
| Cache Protection | CVPM02 CacheVault Power Module |
| Physical Dimensions | 6.600″ x 2.712″ |
| Host Bus Type | x8 lane PCI Express® 3.0 |
| Cache Memory | 4GB DDR3 SDRAM |
| Internal Ports | 24 |
| Data Transfer Rates | Up to 12Gb/s per port |
| Devices Supported | Up to 240 SATA and/or SAS devices |
| Internal Connectors | 6 Mini-SAS HD SFF8643 |
| Operating Temperature | Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory CVPM02 55°C |
| Operating Voltage (V) | +3.3V, +12V |
| OS | Microsoft Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, Fedora, Debian. |
| Regulatory Certifications | Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
| Warranty | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
