KEY FEATURES
- Mainstream, Entry Appliance
- Low Power, Cost effective
- Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series
- Intel® C232 chipset
- 1x 3.5″ Fixed drive bay or 2x 2.5″ drive option
- Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
- 1 PCI-E 3.0 x8 AOC slot
- 2 GbE ports with Intel® i210-AT, 1 Dedicated IPMI port
- 1 VGA, 1 COM, 2 USB 3.0, 2 USB 2.0
- 200W Multi-output power supply

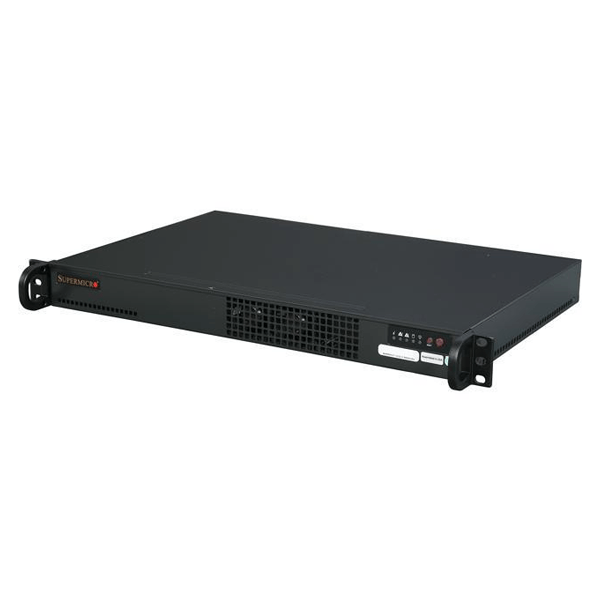

SUPERSERVER 5019S-L (SYS-5019S-L) QUICK SPECIFICATIONS
| Product Type/Brand |
Server Supermicro |
| Product SKUs |
SYS-5019S-L (SuperServer 5019S-L) |
| Motherboard |
Supermicro X11SSL-F |
| PROCESSOR/CACHE |
| CPU |
- Single Socket H4 (LGA 1151) supports
- Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3
- CPU TDP up to 45W, 80W option fan
|
| Cores |
|
| MEMORY |
| Memory Capacity |
- 4x 288-pin DDR4 DIMM slots
- Up to 64GB DDR4 ECC UDIMM
|
| Memory Type |
2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs |
| DIMM Sizes |
16GB, 8GB, 4GB |
| Memory Voltage |
1.2V |
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| ONBOARD DEVICES |
| Chipset |
Intel C232 chipset |
| SATA |
- SATA3 (6Gbps) via C232 controller
- RAID 0, 1, 5, 10 support
|
| Network Controllers |
- Dual Intel® I210-AT Gigabit Ethernet LAN ports
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Video |
ASPEED AST2400 BMC |
| CHASSIS |
| Form Factor |
1U Rackmount |
| Chassis Model |
CSE-510-203B |
| EXPANSION SLOTS |
| PCI-Express |
1 PCI-E 3.0 x8 AOC slot |
| M.2 |
|
| DRIVE BAYS/STORAGE |
| Fixed |
1 3.5″ or 2x 2.5″ internal drive bays (fixed) |
| POWER SUPPLY |
| 350W AC power supply w/ PFC |
| Certification |
Gold Certified |
