KEY FEATURES
- Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake)
- 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
- 1 PCI-E 3.0 x16 slot (FH, HL)
- 4 Hot-swap 3.5″ SATA3 bays w/ RAID
- 2x 1GbE with Marvell® 88E1512
- Integrated IPMI 2.0 and KVM with Dedicated LAN
- 1 VGA, 1 COM, 2 USB 3.0, 2 USB 2.0
- 350W High-efficiency Power Supply Platinum Level Certified

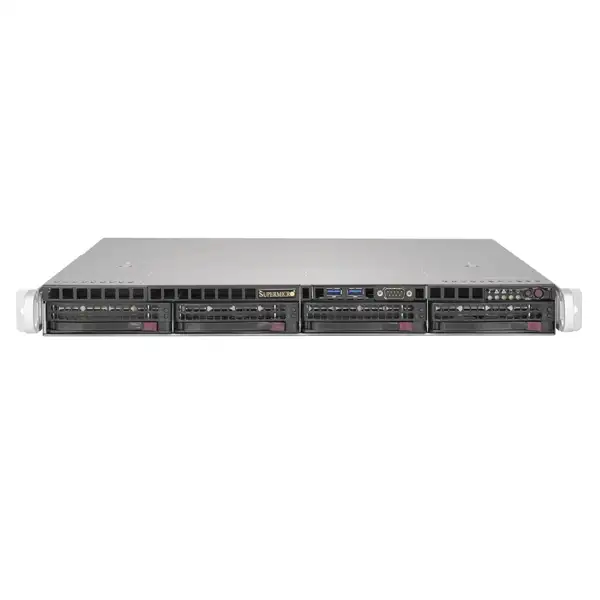

SUPERSERVER 5019P-M (SYS-5019P-M) QUICK SPECIFICATIONS
| Product Type/Brand |
Server Supermicro |
| Product SKUs |
SYS-5019P-M (SuperServer 5019P-M) |
| Motherboard |
Supermicro X11SPM-F |
| PROCESSOR/CACHE |
| CPU |
- Single Socket P (LGA 3647)
- 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡
- Support CPU TDP 70-165W
|
| Cores |
Up to 28 cores |
| MEMORY |
| Memory Capacity |
- 6 DIMM slots
- Up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
|
| Memory Type |
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| ONBOARD DEVICES |
| Chipset |
Intel® C621 chipset |
| SATA |
- SATA3 (6Gbps) via C621 controller
- RAID 0, 1, 5, 10 support
|
| Network Controllers |
Dual Gigabit Ethernet LAN with Marvell® 88E1512 |
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Video |
ASPEED AST2500 BMC |
| CHASSIS |
| Form Factor |
1U Rackmount |
| Chassis Model |
CSE-813MFTQC-350CB2 |
| EXPANSION SLOTS |
| PCI-Express |
1 PCI-E 3.0 x16 slot (FH, HL) |
| M.2 |
- 1x M.2 Interface: PCI-E 3.0 x4
- Form Factor: 2242, 2280
- Key: M-Key
- Double Height Connector
|
| DRIVE BAYS/STORAGE |
| Hot-swap |
4 Hot-swap 3.5″ SATA3 drive bays |
| POWER SUPPLY |
| 350W AC power supply w/ PFC |
| Certification |
 Platinum Level Certified |
SUPERSERVER 5019P-M (SYS-5019P-M) FULL SPECIFICATIONS – CLICK HERE
