| Lifecycle |
Active |
| Distrib. Inventory |
No |
| RAID-on-Chip Controller |
SAS3508 dual-core RAID-on-Chip (ROC) |
| What’s in the box |

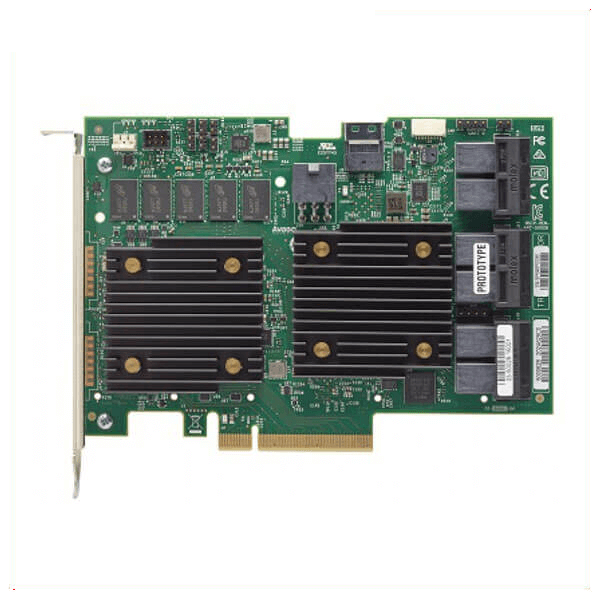

MegaRAID SAS 9365-28i, QIG, bracket |
| Generation |
12 Gb/s |
| Management Software |
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
| Cache Protection |
CacheVault CVPM05 |
| Physical Dimensions |
111.15mm x 167.64mm (4.376” x 6.600”), Standard bracket |
| Host Bus Type |
x8 lane PCI Express® 3.0 |
| Cache Memory |
4GB 2133 MHz DDR4 SDRAM |
| Internal Ports |
28 |
| Data Transfer Rates |
Up to 12Gb/s per port |
| Internal Connectors |
6 x4 SFF-8643; 1 x4 SFF-8654 |
| MTBF |
> 2,000,000 hours |
| Operating Temperature |
Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (CVPM05): 55°C |
| Operating Voltage (V) |
+3.3V, +12V |
| OS |
Microsoft Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, Fedora, Debian. |
| Regulatory Certifications |
Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
| Warranty |
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
