| Lifecycle |
Active |
| Distrib. Inventory |
No |
| RAID-on-Chip Controller |
LSISAS2208 Dual-Core RAID on Chip (ROC) |
| What’s in the box |

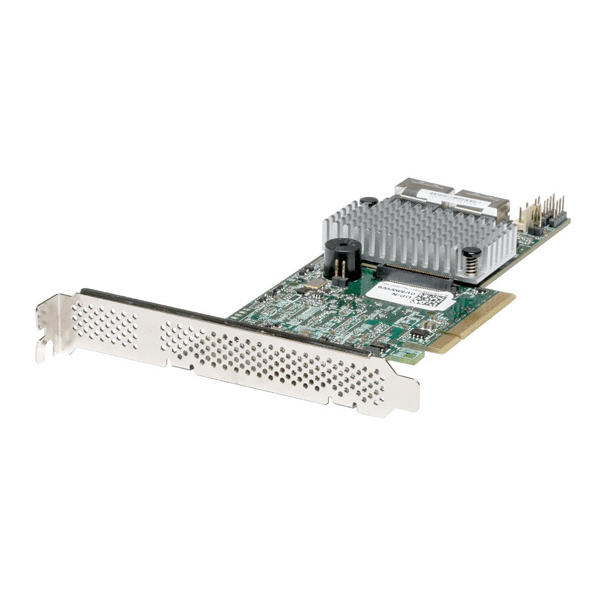

MR SAS 9271‐8i, QIG, LP bracket |
| RAID Management Software |
MegaRAID Storage Manager,StorCLI (command-line interface),CTRL-R (BIOS configuration utility),HII (UEFI Human Interface Infrastructure) |
| Cache Protection |
Optional MegaRAID CacheVault Flash cache protection module (LSICVM01) Optional MegaRAID LSIiBBU09 intelligent battery backup module (LSIiBBU09) |
| Physical Dimensions |
MD2 Low profile (6.6″ x 2.536″) |
| Host Bus Type |
x8 lane PCI Express® 3.0 |
| Cache Memory |
1GB 1333MHz DDRIII SDRAM |
| Internal Ports |
8 |
| Data Transfer Rates |
Up to 6Gb/s per port |
| Devices Supported |
Up to 128 SAS and/or SATA devices |
| MTBF |
1,031,514 hours |
| Operating Temperature |
Maximum ambient: Controller Card: 60°C (55°C with optional CVM01, 45°C with optional LSIiBBU09) |
| Operating Voltage (V) |
+3.3V, +12V |
| OS |
Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems |
| Regulatory Certifications |
BSMI, C-tick, CSA C22.2, EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3, FCC Class A, Class B, RRL for MIC, UL, UL1950, VCCI |
| Warranty |
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
