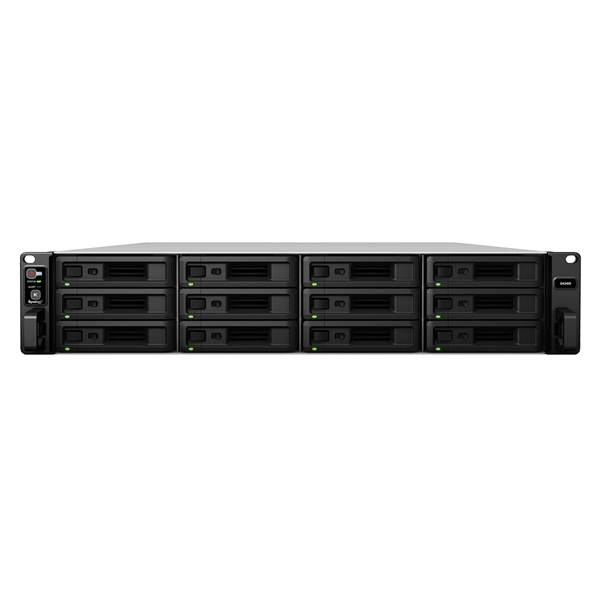

Synology SA3400 Specs
CPU | CPU Model | Intel Xeon D-1541 |
|---|---|---|
| CPU Architecture | 64-bit | |
| CPU Frequency | 8-Core 2.1 (base) / 2.7 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | ||
Memory | System Memory | 16 GB DDR4 ECC RDIMM |
| Memory Module Pre-installed | 16 GB (16 GB x 1) | |
| Total Memory Slots | 4 | |
| Memory Expandable up to | 128 GB (32 GB x 4) | |
| Notes |
| |
Storage | Drive Bays | 12 |
| Maximum Drive Bays with Expansion Unit | 96 (RX1217sas) / 180 (RX2417sas) | |
| Compatible Drive Type* (See all supported drives) |
| |
| Maximum Internal Raw Capacity | 192 TB (16 TB drive x 12) (Capacity may vary by RAID types) | |
| Maximum Raw Capacity with Expansion Units | 1,536 TB (192 TB + 16 TB drive x 84) (Capacity may vary by RAID types) | |
| Maximum Single Volume Size* |
| |
| Hot Swappable Drive | ||
| Notes |
| |
External Ports | RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| RJ-45 10GbE LAN Port | 2 (with Link Aggregation / Failover support) | |
| USB 3.0 Port | 2 | |
| Expansion Port | 1 | |
PCIe | PCIe Expansion | 2 x Gen3 x8 slots (x8 link) |
| Add-In-Card Support | PCIe Network Interface Card | |
File System | Internal Drives |
|
| External Drives |
| |
| Notes | exFAT Access is purchased separately in Package Center. | |
Appearance | Form Factor (RU) | 2U |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm | |
| Weight | 14.5 kg | |
| Rack Installation Support* | 4-post 19″ rack (Synology Rail Kit – RKS1317) | |
| Notes | The rail kit is sold separately | |
Others | System Fan | 80 mm x 80 mm x 4 pcs |
| Fan Speed Mode |
| |
| Easy Replacement System Fan | ||
| Power Recovery | ||
| Noise Level* | 49.8 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 500 W | |
| Redundant Power Supply | ||
| AC Input Power Voltage | 100 V to 240 V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 137.17 W (Access) 70.95 W (HDD Hibernation) | |
| British Thermal Unit | 468.04 BTU/hr (Access) 242.09 BTU/hr (HDD Hibernation) | |
| Notes |
| |
Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Certification |
| |
Warranty | 5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. | |
Environment | RoHS Compliant | |
Packaging Content |
| |
Optional Accessories |
| |
| Notes | It is required to use D4RD-2666-16G with identical memory modules of the same capacity and frequency. For more information, visit here. | |
